2D Raycasting in Rust with Nannou
Nannou Raycast is a small library I wrote to test 2D ray intersections in nannou, a creative coding framework for Rust. It casts rays against segments, circles and AABBs, and computes reflection, refraction and the Fresnel coefficient for each hit.
The ray
A Ray2d is just an origin and a normalized direction:
pub struct Ray2d {
pub orig: Vec2,
pub dir: Vec2,
}
It can be aimed with look_at, given an angle with set_dir_from_angle, or pointed straight at the mouse, which is how the example below moves it around.
Intersecting a circle
intersect_circle solves the classic ray-sphere equation and, if there is a hit, returns both the distance to the collision and the surface normal at that point:
pub fn intersect_circle(&self, center: &Vec2, radius: &f32) -> Option<(f32, Vec2)> {
let l = *center - self.orig;
let adj = l.dot(self.dir);
let d2 = l.dot(l) - (adj * adj);
if d2 > radius * radius {
return None;
}
// ...distance and normal follow from here
}
The same normal is then fed to reflect and refract, which mirror the formulas used in raytracers: reflect follows the standard I - 2*dot(N,I)*N, while refract and fresnel are the 2D equivalent of the ones described on Scratchapixel.
Trying it out
The circle example casts 60 rays from the mouse position and draws, for each one that hits the circle, the incoming ray in white, the refraction in violet and the reflection in blue:
if let Some((dist, normal)) = ray.intersect_circle(&circle_pos, &circle_radius) {
let hit = ray.orig + ray.dir * dist;
let refraction = ray.refract(normal, IOR_GLASS);
let reflection = ray.reflect(normal);
// draw hit, refraction and reflection as arrows
}

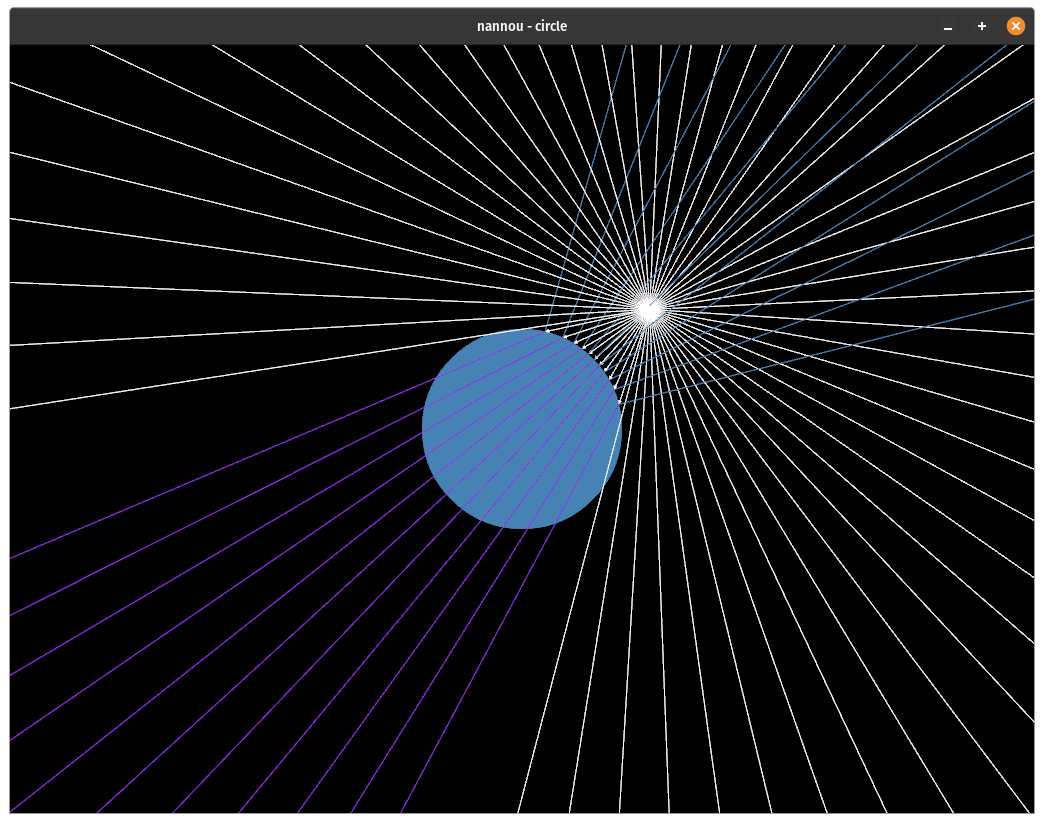

Running cargo run --example circle gives this result, with the rays bending as they pass through the circle as if it were made of glass:
